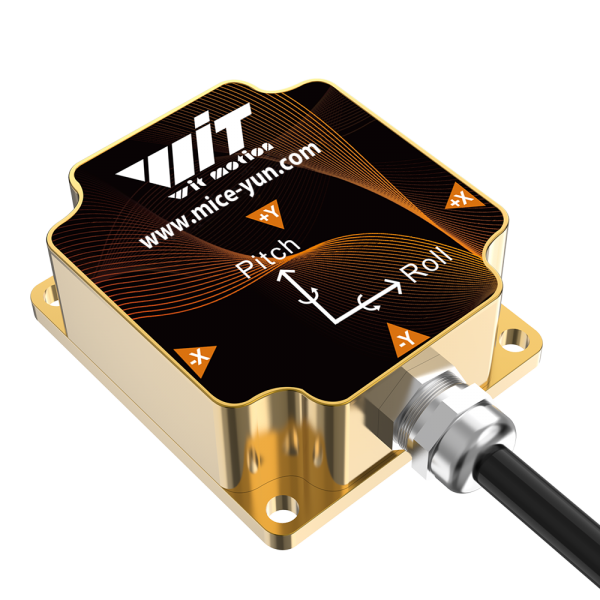

HWT6053 Attitude Sensor - High-Precision 3D Dynamic Attitude Measurement Solution

Real-Time Compensation for Three-Axis Attitude Angles, High-Performance Attitude Sensor

Description

Overview

Elevate your precision measurement capabilities with our advanced MEMS technology-based three-dimensional motion attitude measurement system. Featuring a cutting-edge three-axis gyroscope and accelerometer, this system delivers uncompromising accuracy, real-time compensated three-axis attitude angles, wide measurement range, and exceptional noise resistance without hysteresis. Trust in our stable temperature characteristics for superior performance.

Experience the power of Kalman filtering paired with our proprietary sensor fusion algorithm, offering real-time data updates up to 200Hz. Achieve precise motion capture and attitude estimation with unmatched accuracy.

Our state-of-the-art turntable equipment and instruments lead the industry, boasting high-precision calibration algorithms for enhanced measurement accuracy. Benefit from self-developed calibration techniques for optimal performance.

Rely on our solution for high-precision, high-dynamic, and real-time compensated three-axis attitude angles that thrive in challenging industrial environments. Enjoy long-term stability and unmatched performance.

Streamline your development process with comprehensive support including host computers, operational guides, development manuals, and essential codes. Reduce your research and development time across diverse requirements.

Customize data types to suit a variety of application scenarios seamlessly. Enjoy flexibility in selection and configuration for tailored performance.

Experience unparalleled accuracy with real-time module attitude output in dynamic environments. Our system delivers static attitude measurement accuracy of 0.001° with exceptional stability, surpassing professional inclinometers in performance.

Specifications

Accelerometer parameters

Parameters	Condition	Typical value
Measuring range	/	±2g
Resolution ratio	±2g	0.0000039(g/LSB)
Static zero drift	Place horizontally	±25 mg
Temperature drift	−40°C ~ +125°C	±0.1mg/°C
Bandwidth	/	5~256Hz

Gyroscope parameters

Parameters	Condition	Typical value
Measuring range	/	±2000°/s
Resolution ratio	/	0.061(°/s)/(LSB)
RMS noise	Bandwidth=100Hz	0.028~0.07(°/s)-rms
Static zero drift	Place horizontally	±0.5~1°/s
Temperature drift	-40°C ~ +85°C	±0.005~0.015 (°/s)/℃
Bandwidth	/	5~256Hz

Pitch and roll angle parameters

Parameters	Condition	Typical value
Measuring range	/	X:±180°
Measuring range	/	Y:±90°
Inclination accuracy	/	0.001°
Resolution ratio	Place horizontally	0.001°
Temperature drift	-40°C ~ +85°C	±0.02~0.05°

Heading angle parameter

Parameters	Condition	Typical value
Measuring range	/	Z:±180°
Heading accuracy	6-axis algorithm, static	0.5°（Dynamic integral cumulative error exists）[1]
Resolution ratio	Place horizontally	0.0055°

Note: [1] In some vibration environments, there will be cumulative errors. The specific errors cannot be estimated and will be subject to actual testing.

Application

· Virtual reality/augmented reality, head-mounted displays

· Large-scale agricultural automatic farming

· Safety monitoring of high-altitude operations

· Drones, manned aircraft

·Industrial attitude monitoring

·Human motion tracking/capture

· Robots, autonomous guided transport vehicles

· Pedestrian navigation

· Unmanned driving/assisted driving

·Military, intelligent weapons and equipment

Application scenarios
