SINET Inclinometer Sensor: High-Precision Industrial Tilt Measurement Solution-Miceyun (Shenzhen) Intelligent Technology Co., Ltd.

SINET Electronic tilt switch mems imu

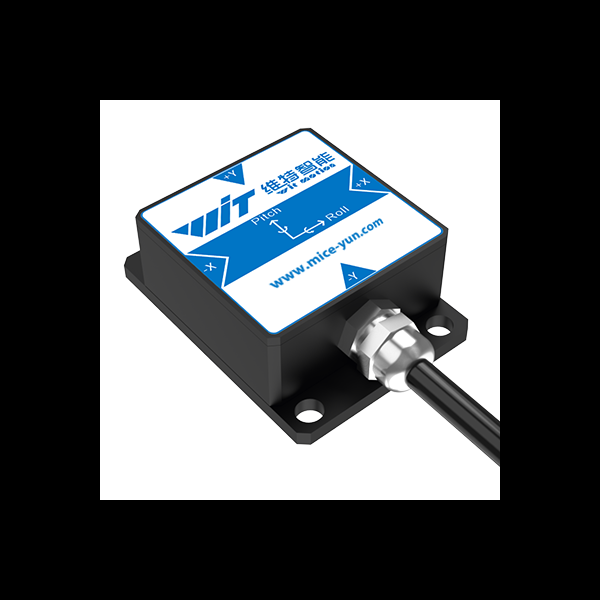

The SINET inclinometer sensor is a high-performance tilt measurement system based on MEMS technology, integrating multiple sensors and independently developed algorithm engines to provide high-precision tilt measurement and attitude estimation, widely used in industrial automation control and platform attitude measurement fields.

Description

Discover the cutting-edge Electronic Tilt Switch by SINET - a top-of-the-line two-axis motion attitude measurement system leveraging state-of-the-art MEMS technology. Featuring a trio of sensors including a three-axis gyroscope, accelerometer, and motion sensor, this product sets the benchmark in accuracy and performance. With a proprietary attitude dynamics algorithm engine and dynamic Kalman filter fusion algorithm, the MEMS module delivers precise inclination angle measurements with unmatched precision.

Revolutionizing data accuracy, our sensor fusion algorithm, rooted in Kalman filtering principles and boasting proprietary rights, ensures real-time data updates at a staggering rate of up to 200Hz. Coveted for its ability to meet stringent high-precision requirements and facilitate flawless motion capture and attitude estimation, this product is a game-changer.

Setting new standards in precision, SIN Series products from Shenzhen Weite Intelligent Technology Co., Ltd., feature an inbuilt high-precision inclination measurement unit. By translating static gravitational acceleration into inclination changes, these sensors accurately measure inclination and pitch angles relative to the horizontal plane. Offering RS232, RS485, or TTL level interfaces, this product guarantees exceptional precision, stability, and ease of use, making it the go-to choice for industrial inclination measurement and automation control.

Equipped to thrive in demanding industrial settings, this product features robust resistance to external electromagnetic interference, ensuring seamless operation in harsh environments. Choose SINET for unparalleled accuracy, reliability, and efficiency in industrial automation control and platform attitude measurement.

Additionally, we provide a comprehensive suite of resources including host computers, operating instructions, development manuals, and codes tailored to meet diverse user needs, streamlining your research and development process.

Specifications

Accelerometer parameters

Parameter	Condition	Typical value
Range	/	±16g
Resolution	±16g	0.0005(g/LSB)
RMS noise	Bandwidth=100Hz	0.75~1mg-rms
Static drift zero	Placed horizontally	±20~40mg
Temperature drift	-40°C ~ +85°C	±0.15mg/℃
Bandwidth	/	5~256Hz

Gyroscope parameters

Parameter	Condition	Typical value
Range	/	±2000°/s
Resolution	±2000°/s	0.061(°/s)/(LSB)
RMS noise	Bandwidth=100Hz	0.028~0.07(°/s)-rms
Static drift zero	Placed horizontally	±0.5~1°/s
Temperature drift	-40°C ~ +85°C	±0.005~0.015 (°/s)/℃
Bandwidth	/	5~256Hz

Pitch and roll angle parameters

Parameter	Condition	Typical value
Range	/	XY:±90°
Lnclination accuracy	Static	0.1°
Lnclination accuracy	Dynamic	0.5°
Resolution	Placed horizontally	0.0055°
Temperature drift	-40°C ~ +85°C	±0.5~1°

Heading angle parameter

Parameter	Condition	Typical value
Range	/	Z:±180°
/	6-axis algorithm, static	0.5° (Dynamic integral cumulative error exists)
Resolution	Placed horizontally	0.0055°

Note:

【1】In some vibration environments, there will be cumulative errors. The specific errors cannot be estimated and are subject to actual testing.

Basic parameters

Parameter

Condition

Minimum

Typical value

Make an inquiry
