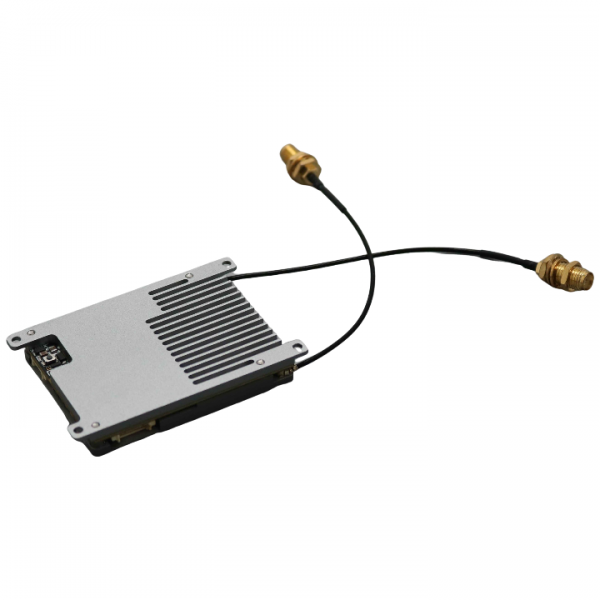

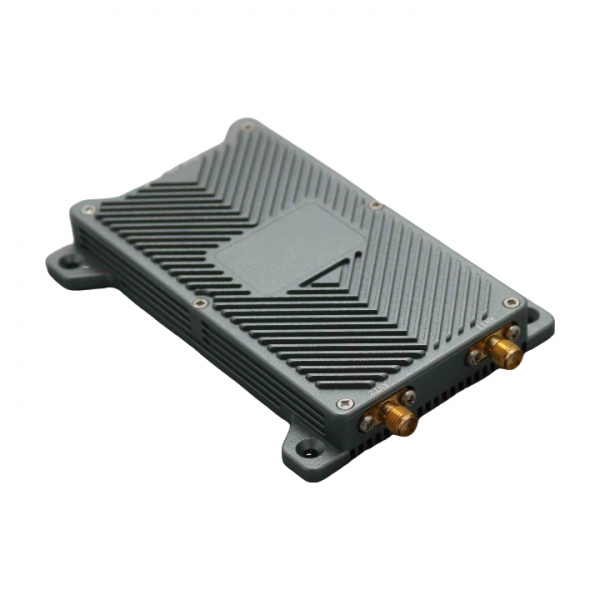

200M ultra-wideband ad hoc radio

Description

Efficient self-organizing networking capability:

Adopting SOC+ADI highly integrated new broadband "wireless self-organizing networking" technology, supporting central base station multi-point networking, fixed multi-hop relay networking, dynamic routing self-organizing networking (mesh), realizing automatic networking function without complex system configuration.

Supports arbitrary topology, multi-hop relay, relay forwarding, with excellent anti-destruction and scalability.

Excellent transmission performance:

The data bandwidth peak value is ≥200Mbps, providing efficient data transmission capability.

The transmission distance can be set by software, up to 80km, to meet the needs of long-distance communication.

High receiving sensitivity, such as -96dBm@10MHz, ensures stable communication quality in complex environments.

Safe and reliable:

The channel adopts AES128 encryption to ensure the security of communication data.

Supports high-precision radio ranging, distance position monitoring between nodes (not relying on GPS and Beidou), providing additional security.

Flexible configuration and management:

The logical attributes of each node can be flexibly configured, supporting AP base station mode and self-organizing network mode.

Provides two management methods: web menu access and serial port AT command, which is convenient for users to configure and monitor equipment.

Strong adaptability:

Suitable for unmanned equipment such as robots, drones, unmanned boats, etc., suitable for emergency communications and information transmission in complex environments.

The maximum mobile speed of the tested node is ≥250 km/h, which meets the communication needs of high-speed mobile devices.

Ultra-wideband self-organizing network radio

SOC+ADI integrated technology

Efficient transmission performance

Data encryption

Radio high-precision ranging

Flexible configuration and management

UAV/robot/unmanned boat communication

Emergency communication
