Overview

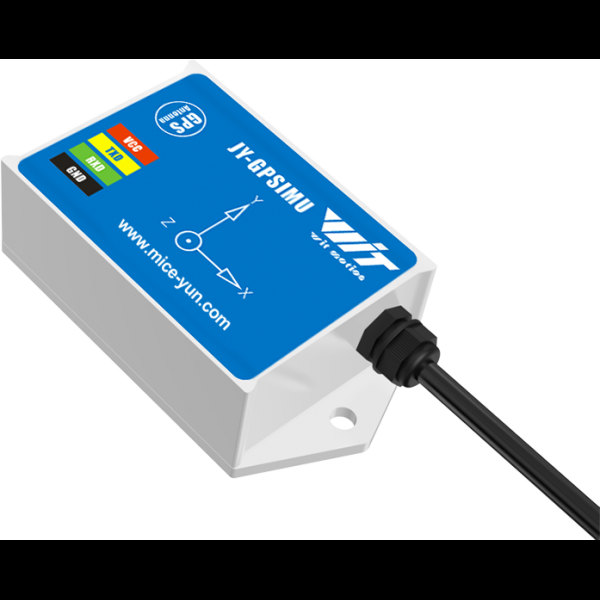

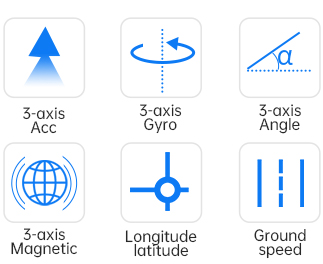

An advanced three-dimensional motion attitude measurement system leveraging MEMS technology. Boasting a three-axis gyroscope, three-axis accelerometer, three-axis electronic compass, GPS+BD module, and other motion sensors. By merging top-tier sensors with our cutting-edge attitude dynamics core algorithm engine and high-dynamic Kalman filter fusion algorithm, we deliver customers ultra-precise, real-time compensated three-axis attitude angles. Customizable configurations cater to diverse application needs.

Our premier sensor fusion algorithm, rooted in Kalman filtering principles and encompassing proprietary intellectual property, ensures real-time data updates at up to 200Hz. This facilitates meeting stringent requirements for high-precision applications, enabling precise motion tracking and attitude estimation.

Equipped with state-of-the-art high-precision turntable equipment and instruments, our products feature in-house developed high-precision calibration and calibration algorithms. This enhances product measurement accuracy, cementing our status as a market leader in precision instrumentation.

Complementing our offerings are various essential tools including host computers, operation manuals, development guidelines, and development codes. These resources empower users to streamline research and development efforts and efficiently address diverse requirements while minimizing time-to-market.

Specifications

Accelerometer parameters

Gyroscope parameters

Magnetometer parameters

Pitch and roll angle parameters

Heading angle parameter

Note:【1】Please perform magnetic field calibration in the testing environment before use to ensure that the sensor is familiar with the magnetic field in the environment. During calibration, please stay away from magnetic interference.

【2】In some vibration environments, there will be cumulative errors. The specific errors cannot be estimated and are subject to actual testing.

GPS Parameter

Index	Technical Parameters
Signal reception	BDS/GPS/QZSS/GLONASS
Cold start TTFF	≤32s
Hot start TTFF	≤1s
Recapture TTFF	≤1s
Cold start capture sensitivity	-148dBm
Hot start capture sensitivity	-156dBm
Recapture sensitivity	-160dBm
Tracking sensitivity Make an inquiry Related products WTRTK-4G Differential positioning module... The WTRTK-4G is an advanced RTK sensor that combines real-time dynamic positioning technology with high-precision inclination detection, providing users with precise and stable measurement solutions. Whether in civil engineering, construction surveys, or geospatial data acquisition, the WTRTK-4G meets your demands for accurate measurements. View more HWT9073 0.001° Precision Crystal Gyro Inclinometer... The HWT9073 attitude sensor adopts advanced technology and algorithms, integrates high-precision gyroscopes, accelerometers, and geomagnetic field sensors, and can solve the motion posture of the module in real time, providing a wide measurement range, excellent noise resistance, and stable temperature characteristics. In addition, it has an independent voltage stabilization circuit and supports multiple digital interfaces, suitable for long-term stable operation in industrial environments. View more WT901BLECL 5.0 Accurate 9-Axis Bluetooth Accelero... The WT901BLECL 5.0 Bluetooth sensor is a state-of-the-art device incorporating high-precision gyroscopes, accelerometers, and geomagnetic sensors. With advanced algorithms and dynamic filtering, it delivers exceptional accuracy and stability in real-time motion tracking applications. View more JY901S 9-axis AHRS Tilt Inclinometer Gyroscope Mo... The JY901S 9-axis AHRS Tilt Inclinometer Gyroscope Module is designed to deliver high-precision motion posture data in real-time, utilizing cutting-edge microprocessors and dynamic filtering algorithms. Featuring exceptional stability and accuracy, this module surpasses professional inclinometers, making it ideal for applications requiring precise motion tracking. View more Join our mailing list Sign up to receive company and industry news, product information and more ! Submit Contact with us right now Sales Director : Shirley Hou E-Mail: h@mice-yun.com Mob / Whatsapp: +86 188 0664 3732 Wechat Product information Focusing on continuous research and innovation of technology, we are committed to becoming a leading supplier of attitude sensing solutions in China, providing high-precision, high stability, and high-performance domestic attitude sensors for the development of intelligent applications worldwide. Submit Shirley Hou Shirley Hou 188 0664 3732
