Overview

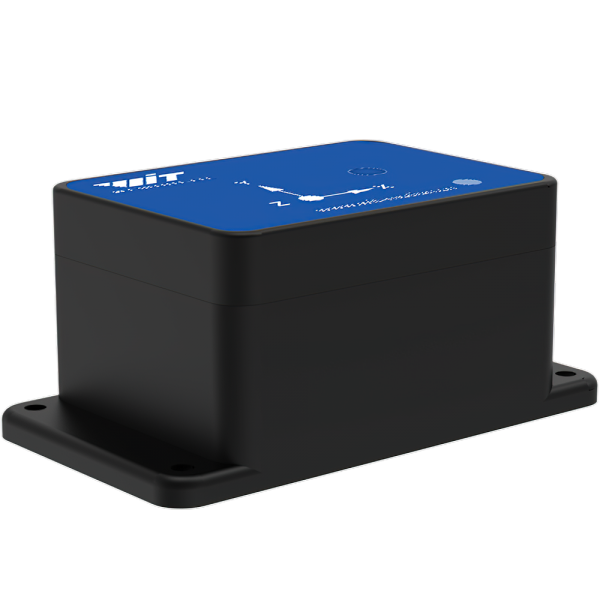

This sensor module features a high-precision accelerometer, powered by a top-notch microprocessor and state-of-the-art Kalman dynamic filtering algorithms, offering real-time motion posture solutions efficiently.

Equipped with an angle alarm function, users have the flexibility to customize alarm thresholds. Upon surpassing the set value, the sensor sends prompt data alerts, enabling tilt alarm notifications, remote control via WeChat on your mobile phone, ensuring rapid response and reliable monitoring with image viewing capabilities.

Leveraging advanced digital filtering technology, this sensor effectively minimizes measurement noise, elevating the overall measurement accuracy.

With LTE full network communication capability, the remote terminal can access real-time data, manage the module, and facilitate seamless IoT integration. Benefit from rapid network connectivity, low latency, and robust 4G support.

Operating within established operator networks, this sensor boasts extensive coverage and superior stability. Its antenna incorporates a π-type network impedance matching design, ensuring a standing wave ratio below 1.65 for consistent signal strength.

The low-power consumption mode enables extended outdoor usage, powered by a high-capacity 8500mAH HPC IoT battery. Achieve prolonged standby periods with consumption levels below 10UA, delivering up to 5 years of standby time (averaging 1-hour intervals for data reporting).

Crafted with a durable PC shell, this sensor is waterproof, dustproof, and capable of withstanding high temperatures, ensuring reliability in diverse operating conditions.

Specifications

1.Battery parameters: 3.6V-8500mAh

2. Working current: shutdown <5uA, sleep: <10uA (average), working: <50ma (average)

3. Length of use: 5 years (reported once every hour) (the actual situation is calculated based on the upload time interval)

4. Shell volume: 100mm * 56mm * 44mm

5. Measuring range: acceleration: ±2 g, angle X Y90°,

6. Measuring inclination accuracy: 0.2°.

7. Caching: Up to 10,000 pieces of data can be cached when there is no Internet connection.

8. Data output content: acceleration, angle, battery voltage, XY alarm signal, upload interval, on-chip time, software version.
